- QNAP /
QNAP

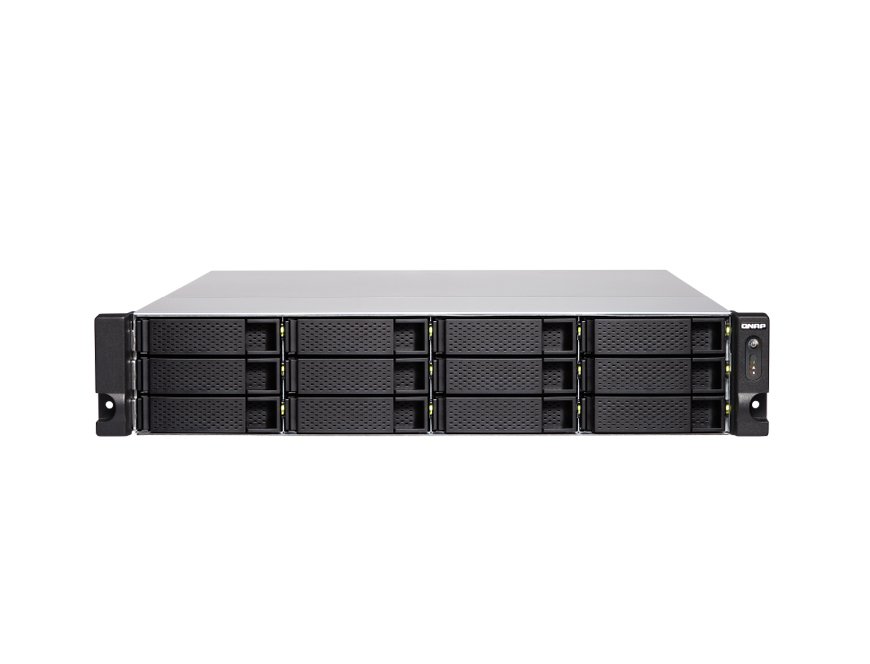

QNAP TS 1273AU RP 8G
Dengan prosesor AMD Ryzen ™ V1000 series V1500B Quad-core yang bertenaga, TS-1273AU-RP mampu meningkatkan kinerja mesin virtual dengan hingga 4core/8 thread pada 2.2GHz. TS-1273AU-RP mencakup dua port 2.5GbE dan dua slot PCIe Gen 3, memberi Anda konektivitas jaringan yang cepat dan kemampuan untuk menambahkan fungsionalitas ekstra dan potensi aplikasi tambahan. TS-1273AU-RP juga dilengkapi redundant power supply untuk memastikan waktu kerja sistem maksimum. Perangkat keras mutakhir yang terintegrasi dengan solusi perangkat lunak yang komprehensif menjadikan TS-1273AU-RP pilihan utama untuk menangani aplikasi dan tugas yang menuntut sumber daya. Spesifikasi: CPU: AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz processor CPU Architecture: 64-bit x86 Hardware-accelerated Transcoding: Optional via a PCIe graphics card System Memory: 8GB Maximum Memory: 32GB Memory Slot: 2 Flash Memory: 5GB (Dual boot OS protection) Drive Bay: 12 x 3.5-inch SATA 6Gb/s, 3Gb/s Drive Compatibility: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives Hot-swappable: Yes M.2 SSD Slot: Optional via a QNAP QM2 PCIe card SSD Cache Acceleration Support : Yes 2.5 Gigabit Ethernet Port (2.5G/1G/100M): 2 (also support 10M) 5 Gigabit Ethernet Port (5G/2.5G/1G/100M): Optional via a network adapter 10 Gigabit Ethernet Port: Optional via a network adapter PCIe Slot: 2 x PCIe Gen3 x4 USB 3.2 Gen 1 port: 1 x Type-A USB 3.2 Gen 2 (10Gbps) Port 2 x Type-C 1 x Type-A HDMI Output: Optional via a PCIe graphics card Form Factor: 2U Rackmount Power Supply Unit: 300W (x2) PSU, 100 - 240V Power Consumption: HDD Sleep Mode 43.67W Power Consumption: Operating Mode, Typical 78.92W Max. Number of Concurrent Connections (CIFS): 1200 20...
QNAP TS 1673AU RP 16G
With its powerful AMD Ryzen™ V1000 series V1500B Quad-core processor, the TS-1673AU-RP is capable of boosting virtual machine performance with up to 4 cores/8 threads at 2.2GHz. The TS-1673AU-RP includes two 2.5GbE ports and two PCIe Gen 3 slots, providing you with fast network connectivity and the ability to add extra functionality and additional application potential. The TS-1673AU-RP also features a redundant power supply to ensure maximum system uptime. Cutting-edge hardware integrated with comprehensive software solutions makes the TS-1673AU-RP the preeminent choice to tackle resource-demanding applications and tasks. 20...

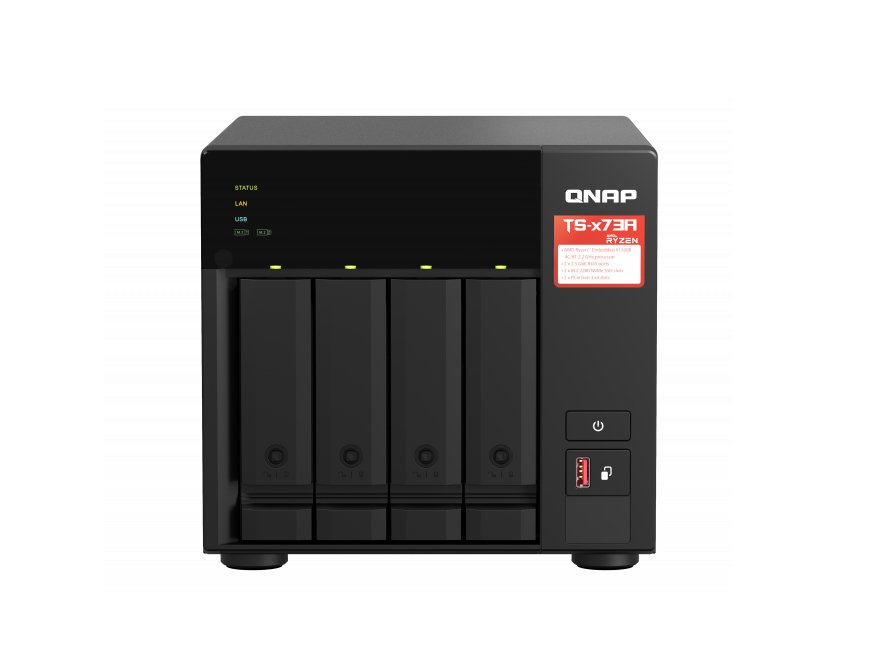

QNAP TS 473A 8G
CPU: AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz processor CPU : Architecture 64-bit x86 Graphic Processors : Optional via a PCIe adapter Hardware-accelerated Transcoding : Optional via a PCIe adapter System Memory : 8 GB SO-DIMM DDR4 (1 x 8 GB) Maximum Memory : 64 GB (2 x 32 GB) Memory Slot : 2 x SO-DIMM DDR4 Support ECC memory Flash Memory : 5GB (Dual boot OS protection) Drive Bay : 4 x 3.5-inch SATA 6Gb/s, 3Gb/s Drive Compatibility : 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives M.2 SSD Slot : 2 x M.2 2280 PCIe Gen3 x1 slots 2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via a PCIe adapter 10 Gigabit Ethernet Port Optional via a PCIe adapter PCIe Slot 2 Slot 1: PCIe Gen 3 x4 Slot 2: PCIe Gen 3 x4 USB 3.2 Gen 2 (10Gbps) Port 3 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps 1 x Type-C USB 3.2 Gen 1 5V/1A 5Gbps HDMI Output Optional via a PCIe adapter Form Factor Tower LED Indicators Status/Power, USB, LAN, Drive 1-4, M.2 SSD 1-2 Buttons Power, Reset, USB Auto Copy Dimensions (HxWxD) 188.2 × 199.3 × 280.8 mm Weight (Net) 5.03 kg Weight (Gross) 6.04 kg Operating temperature 0 - 40 °C (32°F - 104°F) Storage Temperature -20 - 70°C (-4°F - 158°F) Relative Humidity 5-95% RH non-condensing, wet bulb: 27?C (80.6?F) Power Supply Unit 250W, 100-240V AC, 50-60Hz, 3.5A Power Consumption: HDD Sleep Mode 19.576 W Power Consumption: Operating Mode, Typical 29.792 W Tested with drives fully populated. Fan System fan: 1 x 120mm CPU fan: 1 x 60mm Sound Level 21.4 db(A) System Warning Buzzer Max. Number of Concurrent Connections (CIFS) - with Max. Memory 2000 20...
QNAP TS TS H973AX 32G
CPU: AMD Ryzen™ Embedded V1500B quad-core eight threads 2.2 GHz processor Architecture: 64-bit x86 Encryption Engine: AES-NI System Memory: 32 GB SO-DIMM DDR4 (2 x 16 GB) Memory Slot: 2 x SO-DIMM DDR4 Drive Bay: 5 x 3.5-inch + 4 x 2.5-inch Drive Compatibility bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch U.2 NVMe PCIe Gen3 x4 solid state drives (2.5-inch Bay #1 & #2) Hot-swappable SSD Cache Acceleration Support 2.5 Gigabit Ethernet Port (2.5G/1G/100M) X 2 10 Gigabit Ethernet Port 1 x 10GBASE-T (10G/5G/2.5G/1G/100M) Wake on LAN (WOL) Jumbo Frame USB 3.2 Gen 2 (10Gbps) Port 1 x Type-C USB 3.2 Gen 2 3 x Type-A USB 3.2 Gen 2 20...
QNAP TS H686 D1602 8G
CPU : Intel Xeon D-1602 dual-core 2.5 GHz processor (burst up to 3.2 GHz) CPU Architecture : 64-bit x86 Hardware-accelerated Transcoding : Yes System Memory : 8GB UDIMM DDR4 ECC Maximum Memory : 128GB Memory Slot : 4 x Long-DIMM DDR4 Flash Memory : 5GB (Dual boot OS protection) Drive Bay : 4 x 3.5-inch + 2 x 2.5-inch SATA 6Gb/s, 3Gb/s M.2 SSD Slot : 2 x M.2 2280/22110 NVMe Gen3 x4 slots SSD Cache Acceleration Support : Yes 2.5 Gigabit Ethernet Port (2.5G/1G/100M) : 4 PCIe Slot : 2 Slot 1: PCIe Gen3 x8 Slot 2: PCIe Gen3 x8 USB 3.2 Gen 1 port : 3 Buttons : Power, Reset, USB Auto Copy Power Supply Unit Input : 100-240V~, 3-1.5A, 60-50Hz; Output 250W Power Consumption: Operating Mode, Typical : 61.115 W Fan : System fan: 1 x 80mm, CPU fan: 1 x 97mm Sound Level : 18.6 db(A) System Warning : Buzzer Kensington Security Slot : Yes Max. Number of Concurrent Connections (CIFS) : 1500 20...
QNAP TS H886 D1622 16 G
CPU: Intel® Xeon® D-1622 quad-core 2.6 GHz processor (burst up to 3.2 GHz) Architecture: 64-bit x86 Encryption Engine: AES-NI System Memory: 16 GB UDIMM DDR4 ECC (2 x 8 GB) Memory Slot: 4 x Long-DIMM DDR4 Drive Bay: 6 x 3.5-inch SATA 6Gb/s, 3Gb/s + 2 x 2.5-inch SATA 6Gb/s, 3Gb/s Drive Compatibility bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives Hot-swappable M.2 SSD Slot 2 x M.2 22110/2280 NVMe PCIe Gen3 x4 slots SSD Cache Acceleration Support 2.5 Gigabit Ethernet Port (2.5G/1G/100M) 4 (also support 10M) 25 Gigabit Ethernet Port Optional via an adapter Wake on LAN (WOL) : Only the 2.5GbE port Jumbo Frame PCIe Slot 2 Slot 1: PCIe Gen3 x8 Slot 2: PCIe Gen3 x8 USB 3.2 Gen 1 port 3 20...
QNAP TS H1277XU RP 3700X 32G
CPU: AMD Ryzen™ 7 3700X 8-core/16-thread 3.6 GHz processor, Turbo Core 4.4 GHz CPU: 64-bit x86 Encryption Engine: AES-NI System Memory: 32 GB UDIMM DDR4 (2 x 16GB) Memory Slot 4 x Long-DIMM DDR4 Drive Bay 12 x 3.5-inch SATA 6Gb/s, 3Gb/s Drive Compatibility 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives Hot-swappable SSD Cache Acceleration Support Gigabit Ethernet Port (RJ45) 2 10 Gigabit Ethernet Port 2 x 10GbE SFP+ SmartNIC port, 2 x 10GBase-T port Wake on LAN (WOL) PCIe Slot 4 Slot 1: PCIe Gen 3 x4 Slot 2: PCIe Gen 3 x8 or PCIe Gen 3 x4* Slot 3: PCIe Gen 3 x4 Slot 4: PCIe Gen 3 x8 or PCIe Gen 3 x4** USB 3.2 Gen 1 port 4 USB 3.2 Gen 2 (10Gbps) Port 1 x Type-C USB 3.2 Gen 2 10Gbps 1 x Type-A USB 3.2 Gen 2 10Gbps 20...
QNAP TS 1283XU RP E2124 8G
CPU: Intel® Xeon® E-2124 quad-core 3.3 GHz processor (burst up to 4.3 GHz) CPU Architecture: 64-bit x86 Floating Point Unit: Yes Encryption Engine: Yes (AES-NI) System Memory: 8 GB UDIMM DDR4 ECC (2 x 4GB) Maximum Memory: 128 GB (4 x 32 GB) Memory Slot: 4 x Long-DIMM DDR4 Flash Memory: 5GB (Dual boot OS protection) Drive Bay: 12 x 3.5-inch SATA 6Gb/s, 3Gb/s Drive Compatibility: 3.5-inch bays: - 3.5-inch SATA hard disk drives - 2.5-inch SATA hard disk drives - 2.5-inch SATA solid state drives Hot-swappable: Yes SSD Cache Acceleration Support: Yes Gigabit Ethernet Port (RJ45): 4 Wake on LAN (WOL): Yes Jumbo Frame: Yes PCIe Slot: 4 Form Factor: 2U Rackmount LED Indicators: HDD 1-12, Status, LAN, storage expansion port status Buttons: Power, Reset Dimensions (HxWxD): 88.3 × 482 × 562 mm 20...
QNAP TS 1253DU RP 4G
CPU : Intel® Celeron® J4125 4-core/4-thread processor, burst up to 2.7 GHz CPU Architecture : 64-bit x86 Graphic Processors : Intel® HD Graphics 600 Floating Point Unit : YES Encryption Engine : YES (AES-NI) Hardware-accelerated Transcoding : YES System Memory : 4 GB SO-DIMM DDR4 (1 x 4 GB) Maximum Memory : 8 GB (2 x 4GB) Memory Slot : 2 x SO-DIMM DDR4 Flash Memory : 4GB (Dual boot OS protection) Drive Bay : 12 x 3.5-inch SATA 6Gb/s, 3Gb/s Drive Compatibility : 3.5-inch bays: - 3.5-inch SATA hard disk drives - 2.5-inch SATA hard disk drives - 2.5-inch SATA solid state drives Hot-swappable : YES M.2 Slot : Optional via a PCIe adapter SSD Cache Acceleration Support : YES 2.5 Gigabit Ethernet Port (2.5G/1G/100M) : 2 (also support 10M) Wake on LAN (WOL) : YES (Only the 2.5GbE port) Jumbo Frame : YES PCIe Slot : 1 (Slot 1: PCIe Gen 2 x2) USB 2.0 port : 2 USB 3.2 Gen 1 port : 2 USB 3.2 Gen 2 (10Gbps) Port : Optional via a PCIe adapter HDMI Output : 1, HDMI 1.4b Form Factor : 2U Rackmount LED Indicators : HDD 1-12, Status, LAN, Expansion, Power Buttons : Power, Reset Dimensions (HxWxD) : 88.7 × 482.2 × 423.8 mm Operating temperature : 0 - 40 °C (32°F - 104°F) Storage Temperature : -20 - 70°C (-4°F - 158°F) Relative Humidity : 5-95% RH non-condensing, wet bulb: 27?C (80.6?F) Power Supply Unit : 300W (x2), 100-240V Power Consumption: HDD Sleep Mode : 36.233 W Power Consumption: Operating Mode, Typical : 71.195 W Fan : 2 x 80mm, 12VDC 20...
QNAP TS 877XU RP 3600 8G
CPU: AMD Ryzen™ 5 3600 6-core 3.6 GHz processor, Turbo Core 4.2 GHz CPU Architecture: 64-bit x86 System Memory: 8GB UDIMM DDR4 Maximum Memory: 64GB Memory Slot: 4 x Long-DIMM DDR4 Flash Memory: 5GB (Dual boot OS protection) Drive Bay : 8 x 3.5-inch SATA 6Gb/s, 3Gb/s Drive Compatibility 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives Hot-swappable: Yes SSD Cache Acceleration Support: Yes Gigabit Ethernet Port (RJ45): 2 10 Gigabit Ethernet Port: 2 x 10GbE SFP+ SmartNIC port PCIe Slot: 4 Slot 1: PCIe Gen 3 x4 Slot 2: PCIe Gen 3 x8 or PCIe Gen 3 x4* Slot 3: PCIe Gen 3 x4 Slot 4: PCIe Gen 3 x8 or PCIe Gen 3 x4** *Slot 2 provides the width of PCIe Gen.3 x8 when Slot 1 is not in use, and provides the width of PCIe Gen.3 x4 when Slot 1 is in use. **Slot 3 provides the width of PCIe Gen.3 x8 when Slot 4 is not in use, and provides the width of PCIe Gen.3 x4 when Slot 4 is in use. USB 3.2 Gen 1 port: 4 USB 3.2 Gen 2 (10Gbps) Port: 1 x Type-C USB 3.2 Gen 2 5V/3A 10Gbps 1 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps Form Factor: 2U Rackmount Max. Number of Concurrent Connections (CIFS): 700 20...
QNAP TS 231K
2-Bay NAS Annapurnalabs Alpine AL214 4 Core, 1.7GHZ 1GB DDR3 2x3.5 "SATA HDD/SSD 2x1 GbE LAN 20...

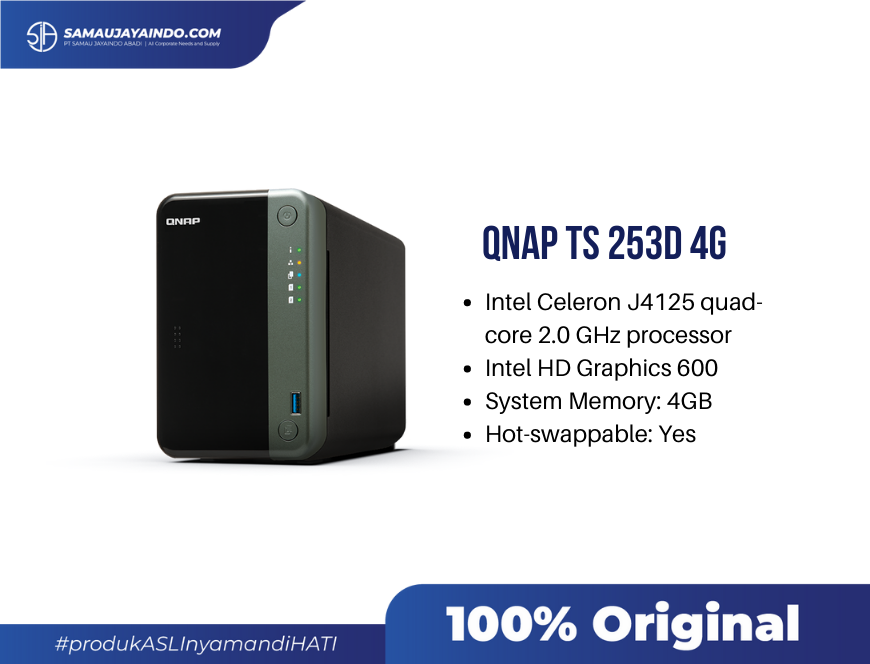

QNAP TS 253D 4G
2-Bay NAS Intel® Celeron® J4125 4-core 4-thread burst up to 2.7 GHz 4GB SO-DIM DDR4 (Max 8GB) 2x3.5 "SATA HDD/SSD M.2 optional 2x2.5 GbE LAN 5/10 GbE Optional 20...
(Pre-Order 12 week after order) - QNAP TVS 872XT i5 16G
8-Bay NAS Intel® Core™ i5-8400T 6-core/6-thread burst up to 3.3 GHz Intel® HD Grapich 630 16GB SODIMM DDR4 (max 64GB) 8x3.5-inch SATA 6Gb/s, 3GB/s 2xM.2 2280 PCIe Gen3 x2 slots 2x1GbE LAN 1x10GBASE-T 2(Thunderbolt ™3) 20...

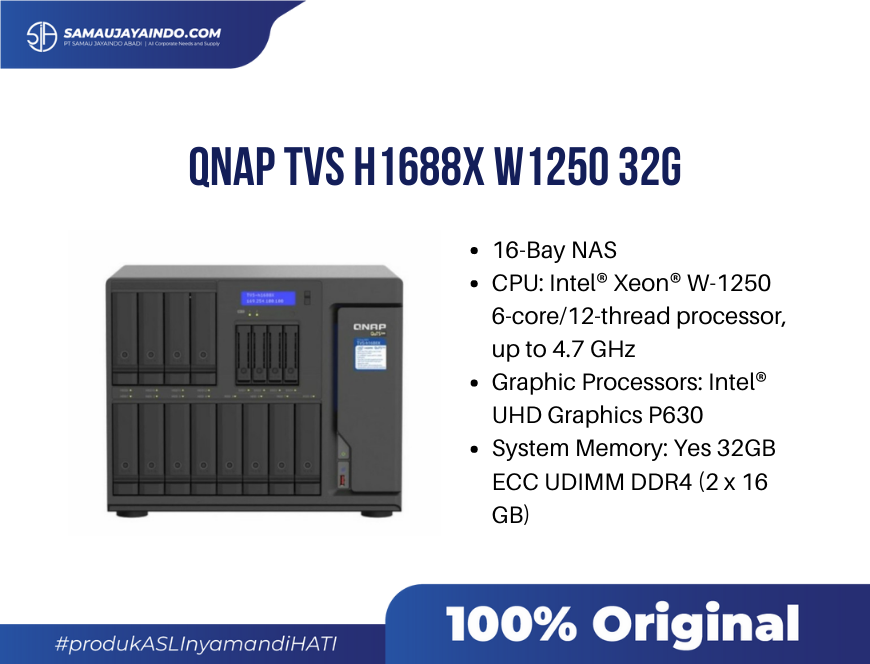

QNAP TVS H1688X W1250 32G
16-Bay NAS Intel® Xeon® W-1250 6-core 12 thread burst up to 4.7 GHz Intel® UHD Grapich P630 32GB ECC UDIMM DDR4 (max 128GB) 12x3.5" SATA HDD/SSD 4x2.5"SATA SSD 2xM.2 22110/2280 NVMe PCIe Gen3 x4 slots 4x2.5 GbE LAN 2x10GBASE-T 5/25 GbE oPTIONAL 20...
QNAP TS H2483XU RP E2236-128G
24-Bay Rackmount NAS Intel® Xeon® E-2236 6-core 3.4GHz (burst up to 4.8 GHz) 128GB UDIMM DDR4 ECC(max 128GB) 24x2.5/3.5-inch SATA 6Gb/s, 3Gb/s 4x 1GbEport 2x10GBE SFP+SmartNIC port 2x10GBase-T port Redundant Power Supply without Rail Kit 20...
QNAP TS 1232PXU RP 4G
12-Bay Rackmount NAS . Annapurnalabs Alpine AL324 64-bit ARM® Cortex-A57 4-core 1,7GHz 4GB UDIMMDDR4 (Max 16GB) 12x 2.5"/3.5"SATA HDD/SSD 2x 2.5 GbE port 2x 10GbE SFP+ Redundant power supply without Rail Kit 20...
