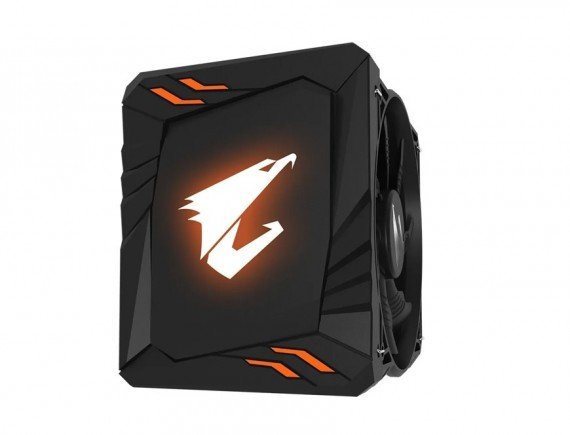

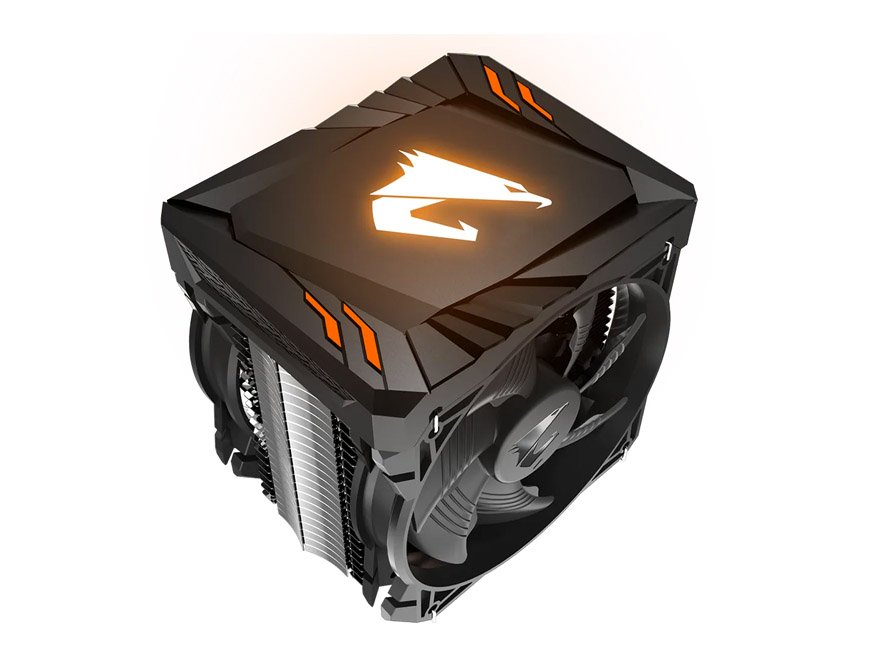

GIGABYTE GBT ATC800

Rated Voltage Fan :12V DC , LED : 12V

Rated Current 0.21A

Fan Speed 500-1700 RPM±10%

Bearing Type 2 Ball Bearing

Weight 955 g

CPU Socket Intel Socket 2066 / 2011 / 1366 / 1156 / 1155 / 1151 / 1150 / 775

AMD Socket FM2+, FM2, FM1, AM4, AM3+, AM3, AM2+, AM2, 939, 754

TDP >200W

Dimensions (LxWxH) 139 x 109 x 169 mm

Heat Sink Dimensions (LxWxH) 133 x 59 x 158 mm

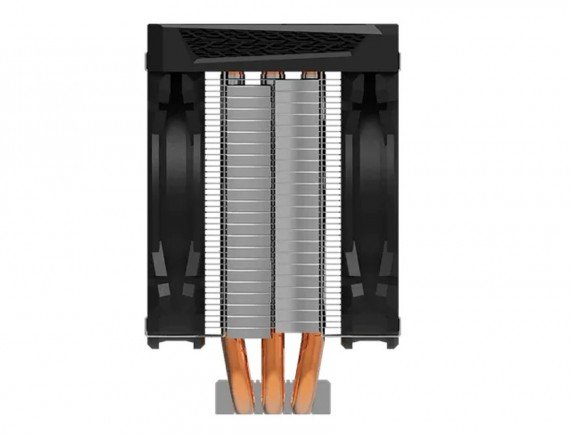

Heat Sink Material 3 x 10mm Heat Pipes / Aluminum Fins

Heat Sink Weight 670 g

Heat Pipe Dimensions Ø10 mm

Fan Dimensions Ø120*25mm*2PCS

Fan Air Flow 14-53 CFM ±10%

Fan Air Pressure 0.2-1.93 mmH2O ±10%

Fan Life Expectancy 70000 Hrs

Noise Level 12 ~ 31 dBA

Connector 4 Pin

Power Consumption 2.52W

Fan Weight 142 g
