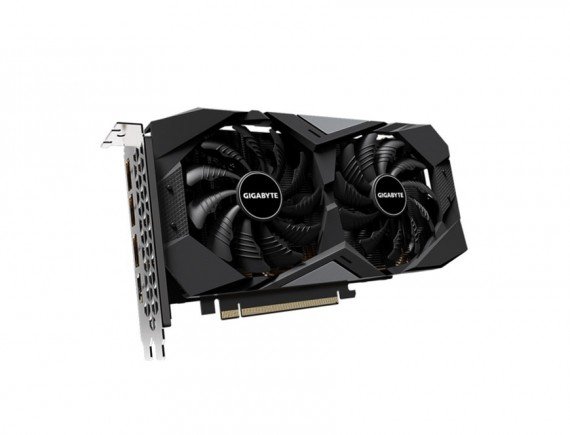

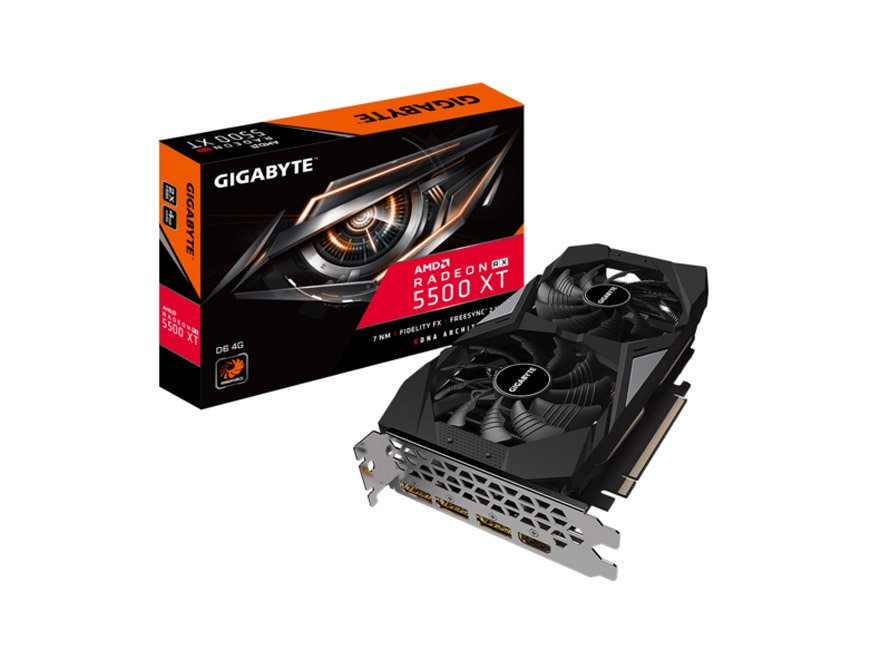

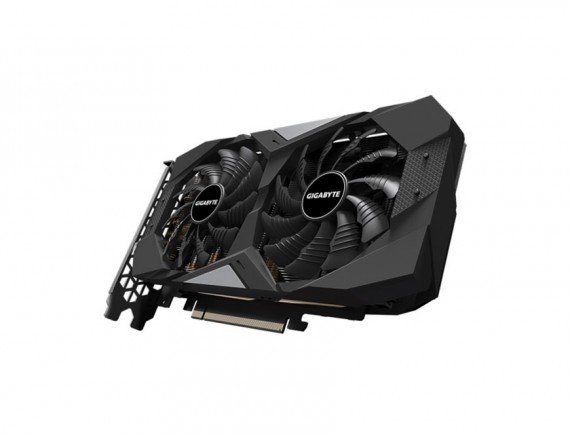

GIGABYTE Radeon™ RX 5500 XT D6 4G (rev. 2.0) VGA GV-R55XTD6-4GD 2.0

Graphics Processing Radeon™ RX 5500 XT

Core Clock Boost Clock* : up to 1845 MHz

Game Clock* : up to 1717 MHz

Stream Processors 1408

Process Technology 7 nm

Memory Clock 14000 MHz

Memory Size 4 GB

Memory Type GDDR6

Memory Bus 128 bit

Memory Bandwidth (GB/sec)224 GB/s

Card BusPCI-E 4.0

Digital max resolution7680x4320

Multi-view4

Card sizeL=225 W=119 H=40 mm

PCB FormATX

DirectX12

OpenGL4.6

Recommended PSU450W

Power Connectors8 Pin*1

Output DisplayPort 1.4 *3 HDMI 2.0b *1

Accessories Quick Guide

Note

* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.

* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
