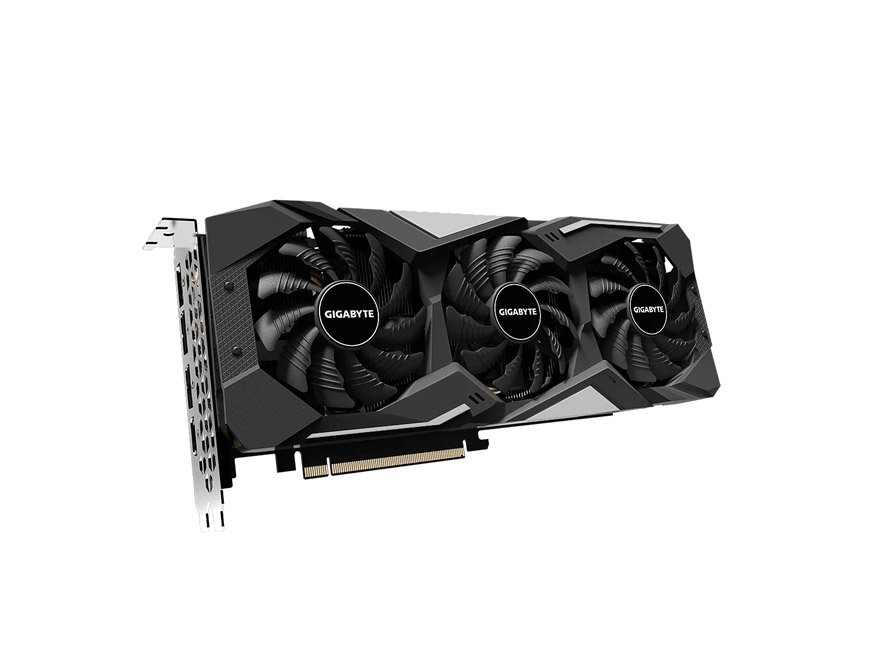

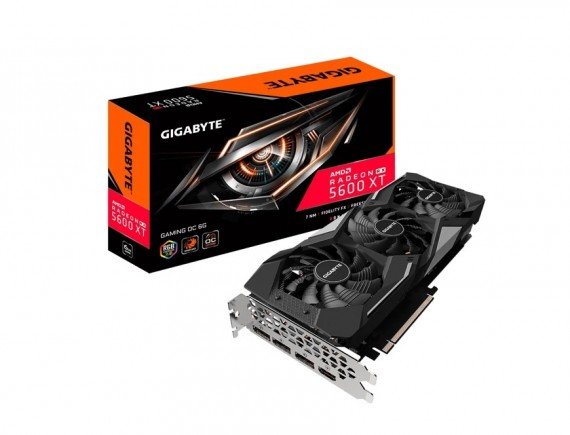

GIGABYTE Radeon™ RX 5600 XT GAMING OC 6G VGA GV-R56XTGaming OC-6GD

Chipset Radeon™ RX 5600 XT

Core Clock Boost Clock* : up to 1620 MHz (Reference card: 1560 MHz)

Game Clock* : up to 1560 MHz (Reference card: 1375 MHz)

Stream Processors 2304

Process Technology 7 nm

Memory Clock 12000 MHz**

Memory Size 6 GB

Memory Type GDDR6

Memory Bus 192 bit

Memory Bandwidth (GB/sec) 288 GB/s

Card Bus PCI-E 4.0 x 16

Digital max resolution 7680x4320

Multi-view 4

Card size L=279.85 W=114.35 H=49.55 mm

PCB Form ATX

DirectX 12

OpenGL 4.6

Power requirement 450W

Power Connectors 8 Pin*1

Output DisplayPort 1.4 *3 HDMI 2.0b *1

Accessories Quick Guide

Note

* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.

* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.

**One-click flash for 14000 MHz memory clock step:

1. Go to the "Support" page in the upper right, then choose the BIOS category.

2. Download the "FA0" BIOS and decompress the zip file.

3. One-click the "GVFLASH.exe", and it will start to flash BIOS to 14000 MHz.

4. Restart your PC.
