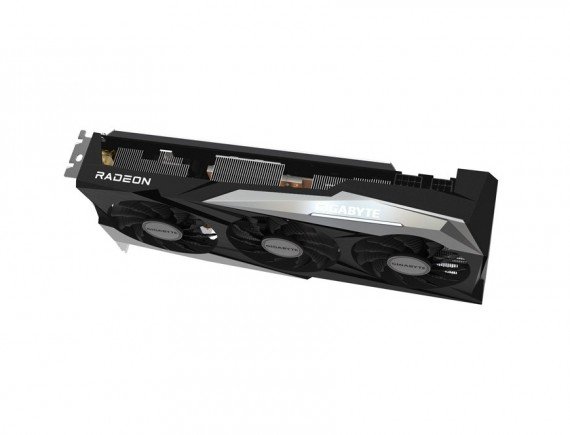

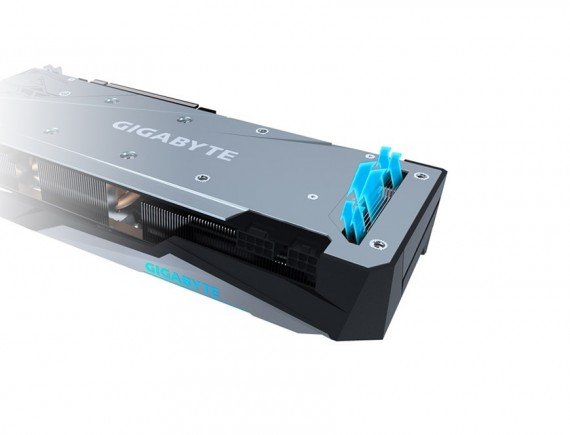

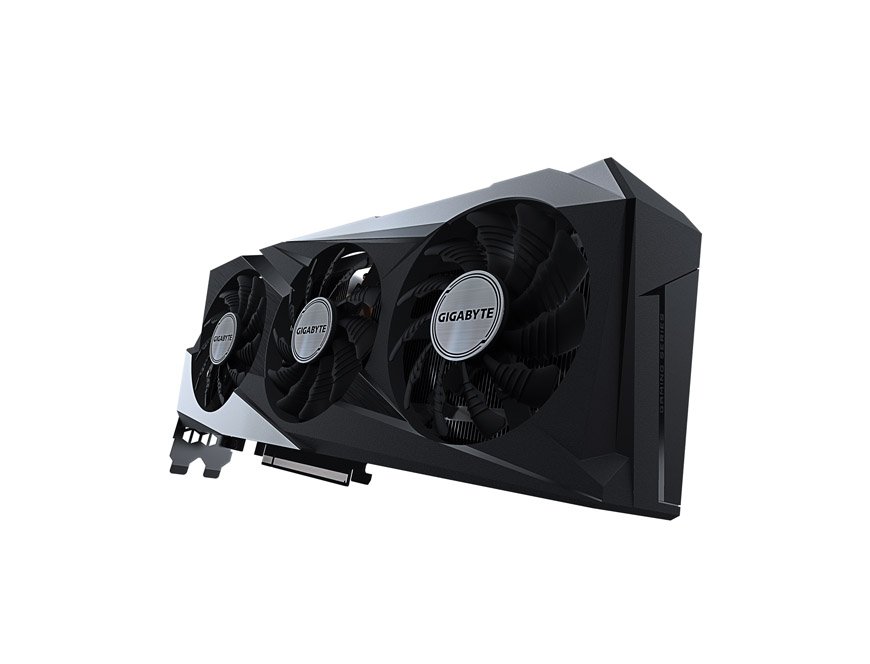

GIGABYTE Radeon™ RX 6700 XT GAMING OC 12G

Graphics Processing Radeon™ RX 6700 XT

Core Clock Boost Clock* : up to 2622 MHz

Game Clock* : up to 2514 MHz

Stream Processors 2560

Process Technology 7 nm

Memory Clock 16000 MHz

Memory Size 12 GB

Memory Type GDDR6

Memory Bus 192 bit

Memory Bandwidth (GB/sec) 384 GB/s

Card Bus PCI-E 4.0 x 16

Digital max resolution 7680x4320

Multi-view 4

Card size L=281 W=115 H=49 mm

PCB Form ATX

DirectX 12 Ultimate

OpenGL 4.6

Recommended PSU 650W

Power Connectors 8 Pin*1, 6 Pin*1

Output DisplayPort 1.4a *2 HDMI 2.1 *2

Accessories Quick guide

Note

“Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.

“Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
