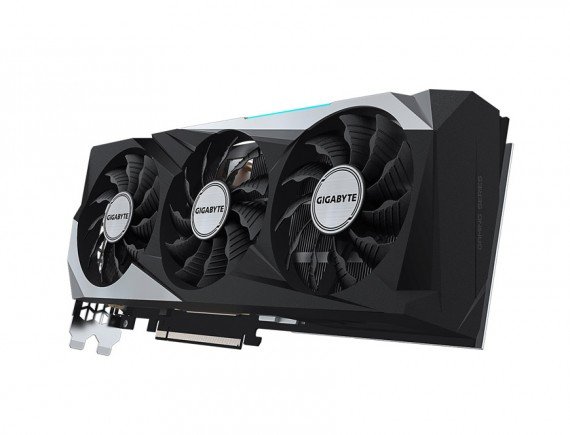

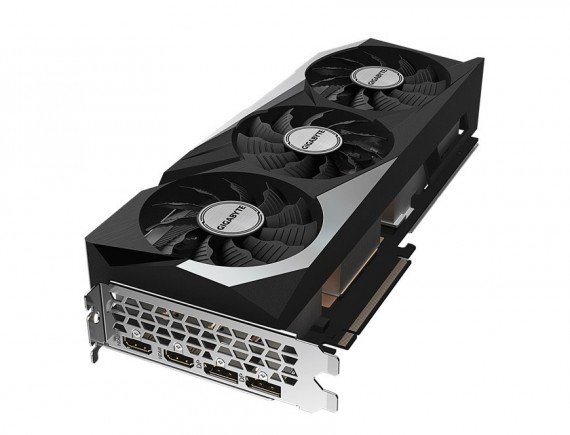

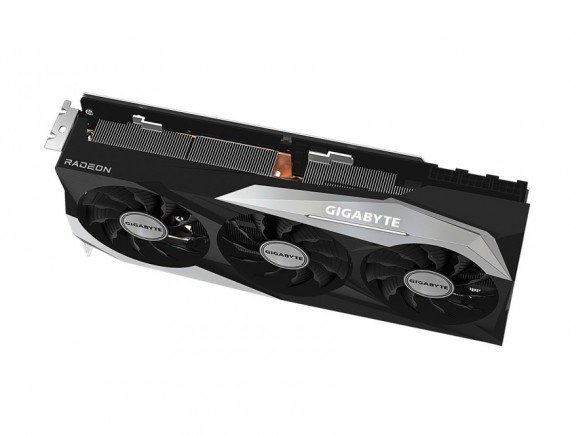

GIGABYTE Radeon™ RX 6900 XT GAMING OC 16G

Chipset Radeon™ RX 6900 XT

Core Clock Boost Clock* : up to 2285 MHz (Reference card: 2250 MHz)

Game Clock* : up to 2050 MHz (Reference card: 2015 MHz)

Stream Processors 5120

Process Technology 7 nm

Memory Clock 16000 MHz

Memory Size 16 GB

Memory Type GDDR6

Memory Bus 256 bit

Memory Bandwidth (GB/sec) 512 GB/s

Card Bus PCI-E 4.0 x 16

Digital max resolution 7680x4320

Multi-view 4

Card size L=286 W=118 H=58 mm

PCB Form ATX

DirectX 12 Ultimate

OpenGL 4.6

Power requirement 850W

Power Connectors 8 pin*3

Output DisplayPort 1.4a *2 HDMI 2.1 *2

Accessories Quick guide

Note

“Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.

“Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
