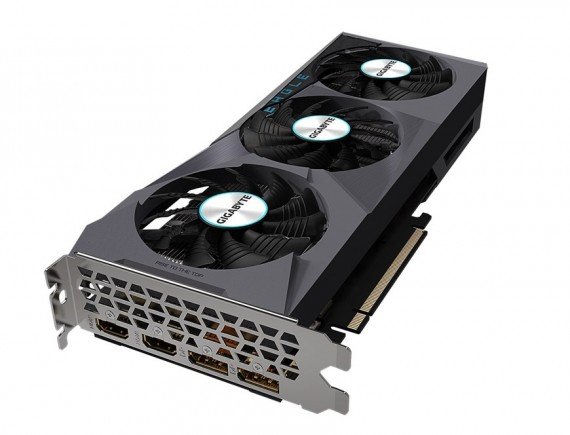

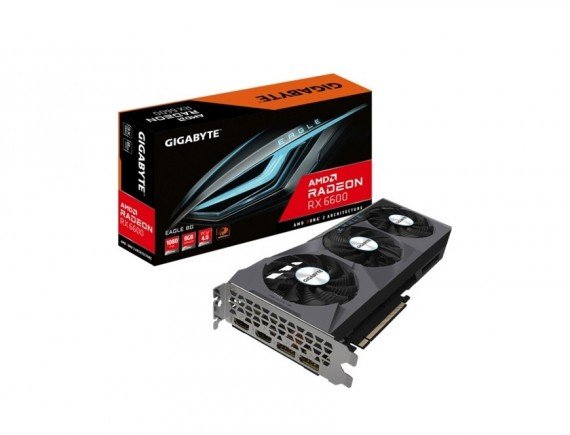

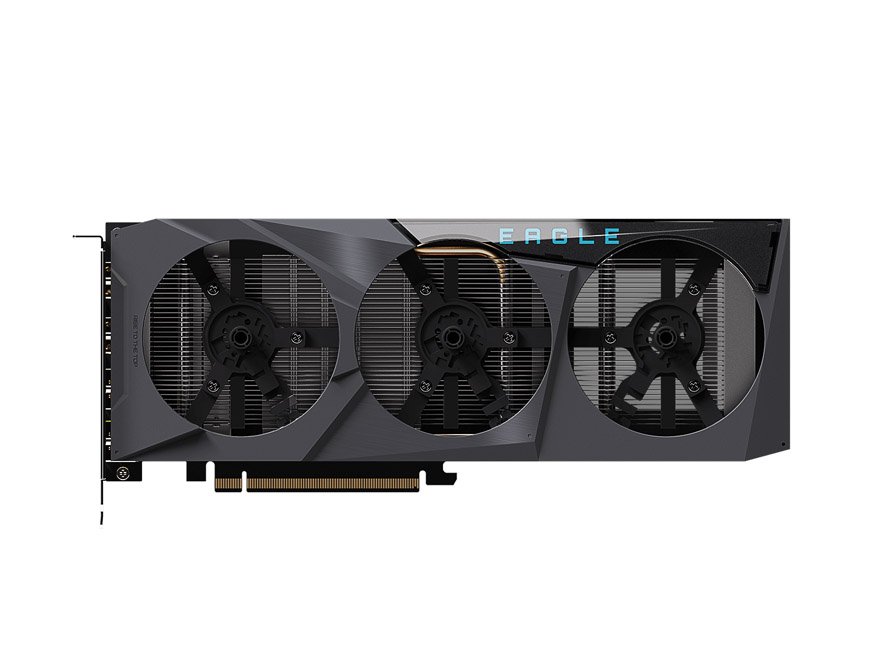

GIGABYTE VGA GV-R66EAGLE-8GD

Graphics ProcessingRadeon™ RX 6600

Core ClockBoost Clock* : up to 2491 MHz

Game Clock* : up to 2044 MHz

Stream Processors1792

Memory Clock 14000 MHz

Memory Size 8 GB

Memory Type GDDR6

Memory Bus 128 bit

Memory Bandwidth (GB/sec) 224 GB/s

Card Bus PCI-E 4.0 x 8

Digital max resolution 7680x4320

Multi-view 4

Card size L=282 W=113 H=41 mm

PCB Form ATX

DirectX 12 Ultimate

OpenGL 4.6

Recommended PSU 500W

Power Connectors 8 pin*1

Output DisplayPort 1.4a *2 HDMI 2.1 *2

Accessories Quick guide

Note

* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.

* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
