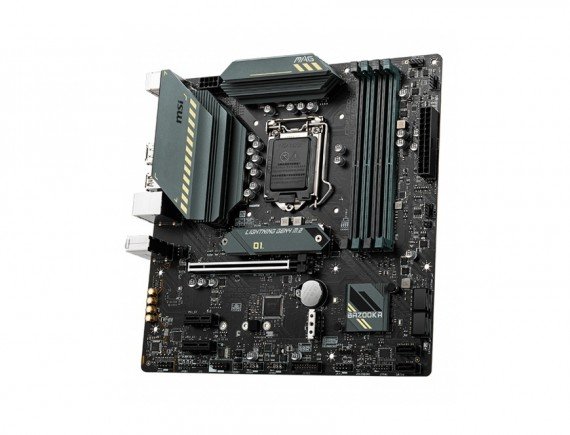

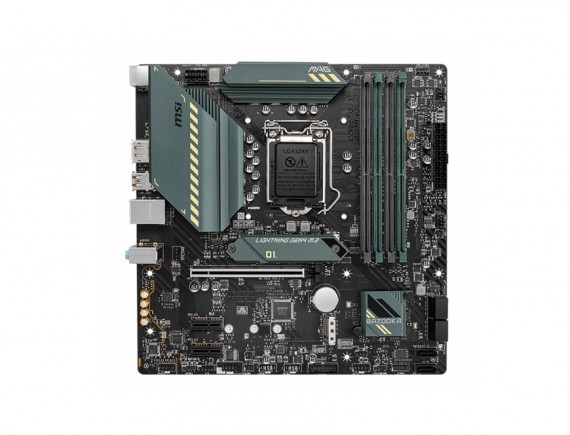

MSI MAG B560M BAZOOKA

PROCESSOR

Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

Processor socket LGA1200

CHIPSET

Intel® B560 Chipset

MEMORY

4x DDR4 memory slots, support up to 128GB1

Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)1

Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)1

Max overclocking frequency:

1DPC 1R Max speed up to 5066 MHz

1DPC 2R Max speed up to 4600+ MHz

2DPC 1R Max speed up to 4266+ MHz

2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile (XMP)

EXPANSION SLOT

1x PCIe x16 slot

PCI_E1 (from CPU)

Support up to PCIe 4.0 for 11th Gen Intel® CPU

Support up to PCIe 3.0 for 10th Gen Intel® CPU

2x PCIe 3.0 x1 slots

PCI_E2 & PCI_E3 (From B560 chipset)

ONBOARD GRAPHICS

1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz

1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz

Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed.

USB

Intel® B560 Chipset

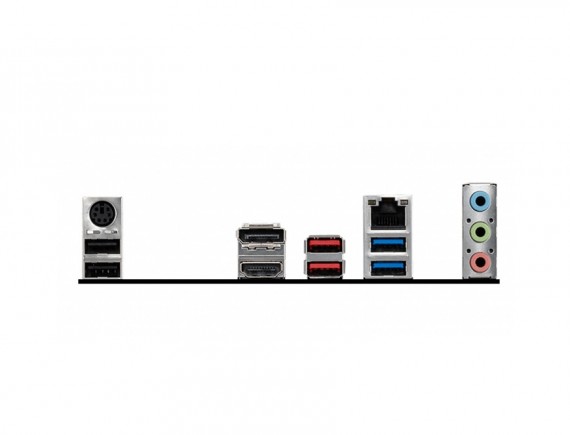

2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel

4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)

2x USB 2.0 Type-A ports on the back pane

USB Hubs GL850G

4x USB 2.0 ports are available through the internal USB 2.0 connectors
