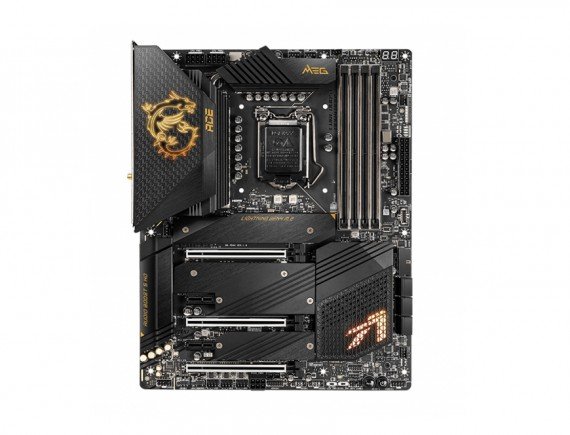

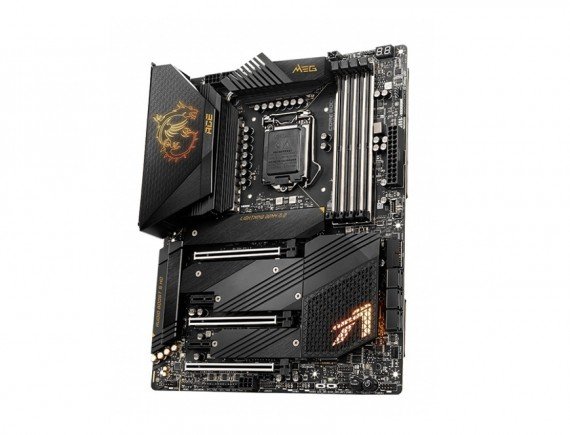

MSI MEG Z590 ACE

PROCESSOR

Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors

Processor socket LGA1200

CHIPSET

Intel Z590 Chipset

MEMORY

4x DDR4 memory slots, support up to 128GB1

Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)1

Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)1

Max overclocking frequency:

1DPC 1R Max speed up to 5600 MHz

1DPC 2R Max speed up to 4800+ MHz

2DPC 1R Max speed up to 4400+ MHz

2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel Extreme Memory Profile (XMP)

EXPANSION SLOTS

3x PCIe x16 slots

Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4

PCIE1 & PCI

E3 slots (From CPU)

Support up to PCIe 4.0 for 11th Gen Intel CPU

Support up to PCIe 3.0 for 10th Gen Intel CPU

PCI_E5 slot (From Z590 chipset)

Supports up to PCIe 3.0

2x PCIe 3.0 x1 slots (From Z590 chipset)

MULTI-GPU

Supports 2-Way NVIDIA SLI Technology

Supports 3-Way AMD CrossFire Technology

ONBOARD GRAPHICS

1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz

Availae only on processors featuring integrated graphics.

THUNDERBOLT 4

IntelJHL8540 Thunderbolt 4 Controller

2x Thunderbolt 4 (USB-C) ports on the back panel

Support up to 40Gbps transfer rate with Thunderbolt devices

Support up to 20Gbps transfer rate with USB4 devices

Support up to 10Gbps transfer rate with USB 3.2 devices

Support up to 5V/3A ,15W power charging

Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices

Supports up to 8K display (need to connect the DisplayPort of the motherboard
