MSI MEG Z590I UNIFY

PROCESSOR

Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron processors 1

Processor socket LGA1200

CHIPSET

Intel Z590 Chipset

MEMORY

2x DDR4 memory slots, support up to 64GB 1

Supports 1R 2133/2666/2933 MHz for 10th Gen IntelCPU (by JEDEC & POR)1

Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen IntelCPU (by JEDEC & POR)1

Max overclocking frequency:

1DPC 1R Max speed up to 5600 MHz

1DPC 2R Max speed up to 4800+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel Extreme Memory Profile [XMP]

EXPANSION SLOTS

1x PCIe x16 slot

Support up to PCIe 4.0 for 11th Gen Intel CPU

Support up to PCIe 3.0 for 11th Gen Intel CPU

ONBOARD GRAPHICS

1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz

1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz

Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed.

THUNDERBOLT 4

Intel JHL8540Thunderbolt 4 Controller

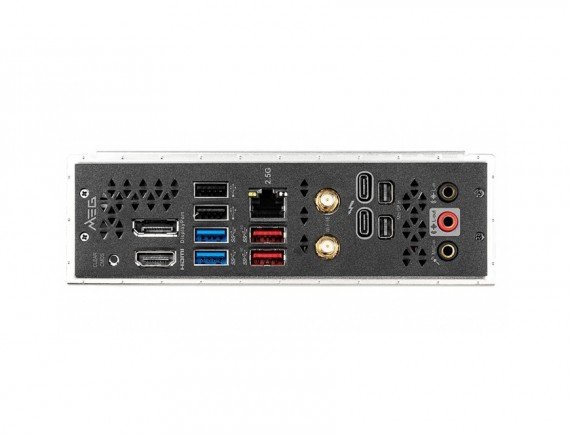

2x Thunderbolt 4 (USB-C) ports on the back panel

Support up to 40Gbps transfer rate with Thunderbolt devices

Support up to 20Gbps transfer rate with USB4 devices

Support up to 10Gbps transfer rate with USB 3.2 devices

Support up to 5V/3A ,15W power charging

Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices

Supports up to 8K display (need to connect the DisplayPort of the motherboard or discrete graphics card to the Mini DisplayPort Input port on the back panel)
