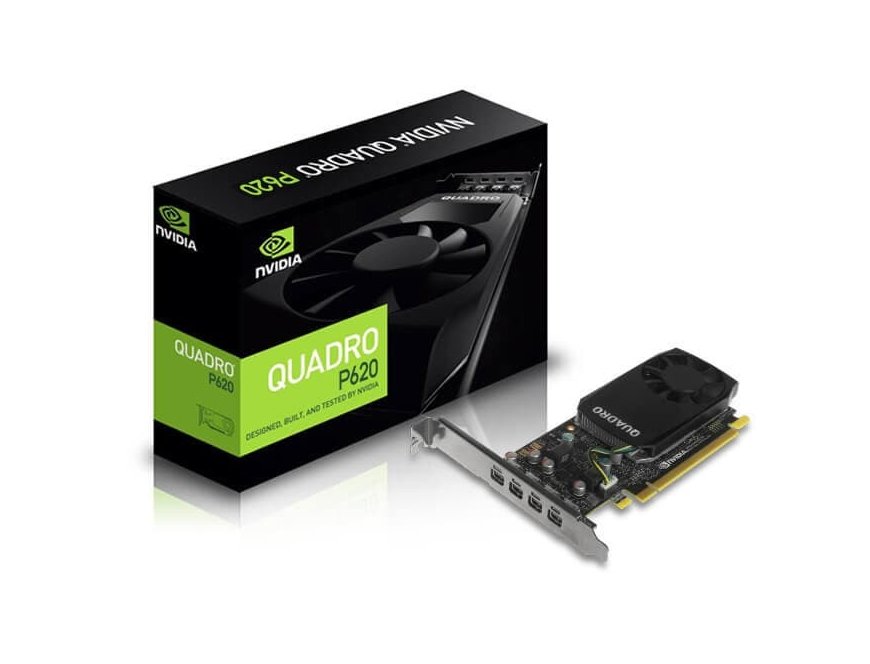

NVIDIA VGA QUADRO P620 2.0

NVIDIA Quadro P620
Powerful Professional Graphics
with Expansive 4K Visual Workspace


Pascal GPU
512 NVIDIA® CUDA® Cores
2 GB GDDR5 CPU Memory
Up to 80 GB/s Memory Bandwidth
PCI Express 3.0 System Interface
1.386 TELOPS FP32 Peak single-precision floating point
40W Max Power Consumption

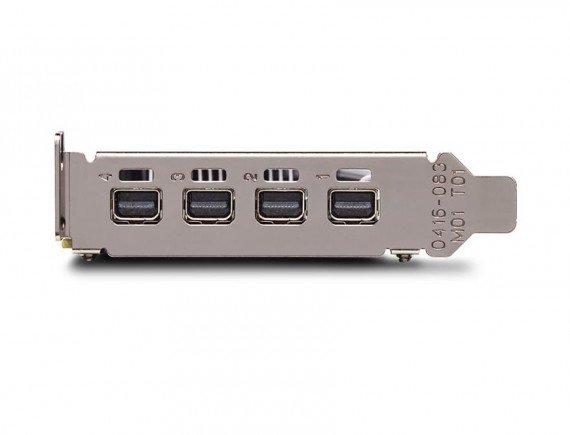

4x mDP 1.4 Display Connectors

GPU Performance Features


Pascal GPU Technology
With 512 CUDA cores, the Quadro P620 provides performance and efficiency for CAD, DCC and visualization professionals in small and power efficient form factor.

Frame Buffer and Memory Bandwidth
2GB GDDR5 memory with up to 80 GB/s memory bandwidth delivers the performance boost and responsiveness demanded by entry level graphics applications.

Pascal Dynamic Load Balancing
Dynamically allocate GPU resources for graphics and compute tasks as needed to maximize resource utilization.

H.264 and HEVC Encode/Decode Engines
Deliver faster than real-time performance for transcoding, video editing, and other encoding applications with one dedicated H.264 and HEVC encode engines and a dedicated decode engine that are independent of 3D/compute pipeline.

NVIDIA GPU BOOST 3.0
Achieve higher application performance without exceeding the power and thermal envelope of the board. Pascal GPU technology maximizes the boost potential of the GPU.

Specifications
GPU Memory
2 GB GDDR5

Memory Interface
128-bit

Memory Bandwidth
Up to 80 GB/s

NVIDIA CUDA® Cores
512

System Interface
PCI Express 3.0 x16

Max Power Consumption
40W

Thermal Solution
Active

Form Factor
2.713”H x 5.7” L, Single Slot, Low Profile

Product Weight
129 grams

Display Connectors
4xmDP 1.4

Max Simultaneous Displays
4 direct, 4 DP1.4, Multi- Stream

Display Resolution
4x 4096x2160 @ 60Hz / 4x 5120x2880 @ 60Hz

Graphics APIs
Shader Model 5.1, OpenGL 4.51, DirectX 12.02, Vulkan 1.01

Compute APIs
CUDA, DirectCompute, OpenCL™
